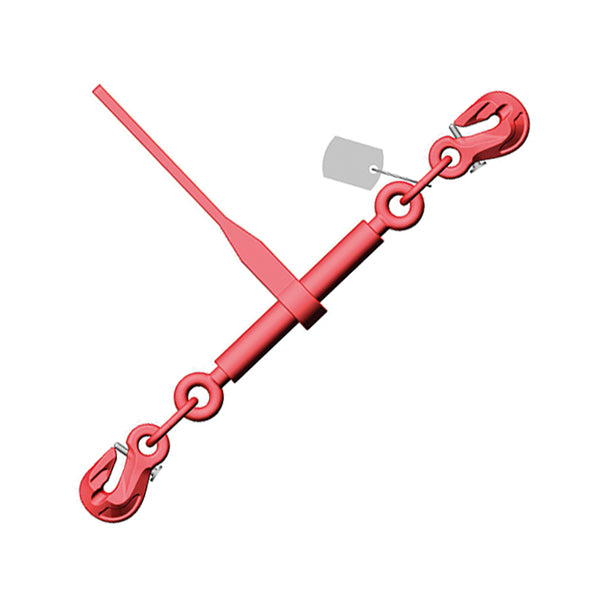

Forst-Extrem - Ratchet load tensioner for 2-part lashing chain - Grade 8

• Ratchet load tensioner RLSP
• Grade 8
• for lashing chain F8 2-part
• Lashing chain trailer according to EN 12195-3
• can be positioned as desired

Chain diameter: 6 mm
LC lashing force: 22 kN
STF normal clamping force: 550 daN
Length closed: 412 mm
Length open: 502 mm
Clamping range: 90 mm
Weight: 1.78 kg

Chain diameter: 8 mm
LC lashing force: 40 kN
STF normal clamping force: 1900 daN
Length closed: 586 mm
Length open: 741 mm
Clamping range: 155 mm
Weight: 4.60 kg

Chain diameter: 10 mm
LC lashing force: 63 kN
STF normal clamping force: 1900 daN
Length closed: 626 mm
Length open: 781 mm
Clamping range: 155 mm
Weight: 5.40 kg

Chain diameter: 13 mm
LC lashing force: 100 kN
STF normal clamping force: 3000 daN
Length closed: 708 mm
Length open: 863 mm
Clamping range: 155 mm
Weight: 8.00 kg
