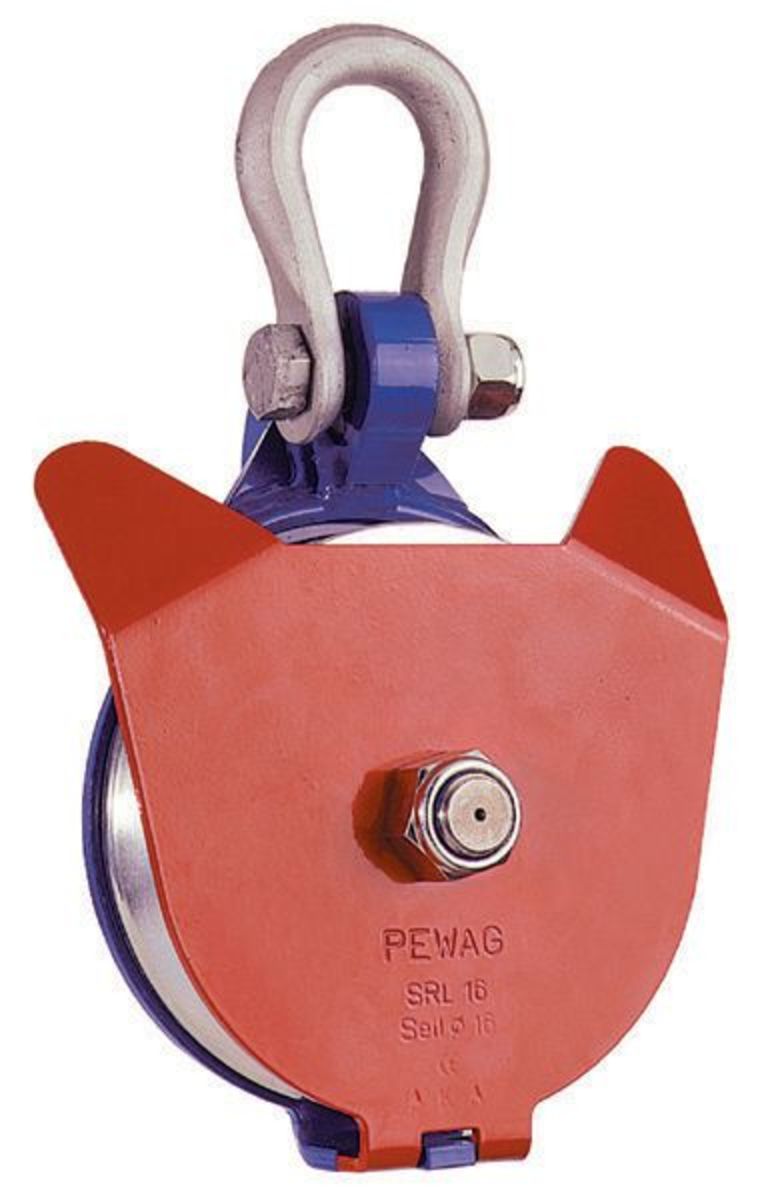

pewag - SRL open pulley

SRL pulley open

Deflection pulley for winch rope when hauling and choking in narrow stands. Ball-bearing steel pulley, galvanized.
With bracket connection for tree protectors.
The rope can be inserted immediately.

SRL 10
- Tensile force: 2,500 daN
- Winch pulling force max: 1,250.00
- Roller diameter: 100 mm
- Rope diameter max: 10 mm
- Weight: 3.18 kg

SRL 14
- Tensile force: 5000 daN
- Winch pulling force max: 2,500.00
- Roller diameter: 140 mm
- Rope diameter max: 14 mm
- Weight: 5.8 kg

SRL 16
- Tensile force: 10,000 daN
- Winch pulling force max: 5,000.00
- Roller diameter: 160 mm
- Rope diameter max: 16 mm
- Weight: 7.85 kg
